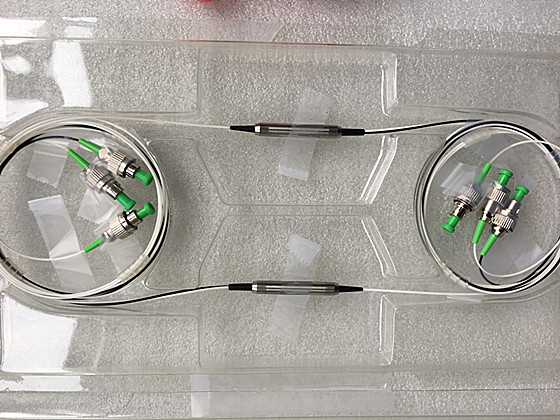

Design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path .

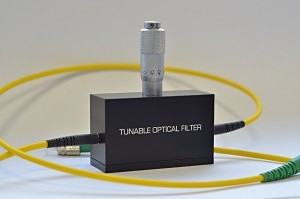

Manually tunable optical filter for manual adjustment of the central wavelength in the area of 1550 nm (C-band). The maximum tunable range is more than 15 nm. The filter is based on the compression of FBG (Fiber Bragg Grating) through the accurate micrometric head which allows fine tuning resolution of 70 pm

Silica fiber

Optical Wavelength 800-1600nm

Eccentricity (fiber core to ferrule) 10µm

Operation Power 60W

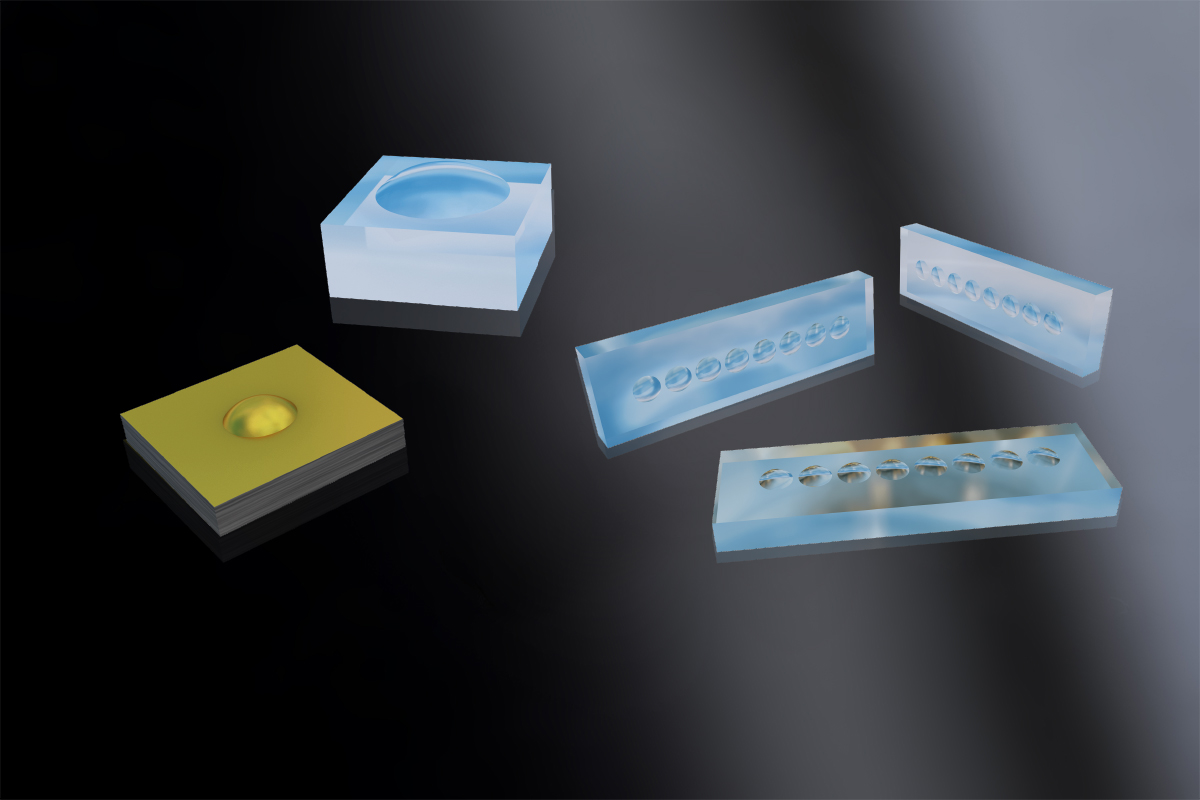

1D & 2D arrays (linear, quadratic, hexagonal, custom) of (a)spherical micro lenses

Bulk material: fused silica, silicon
